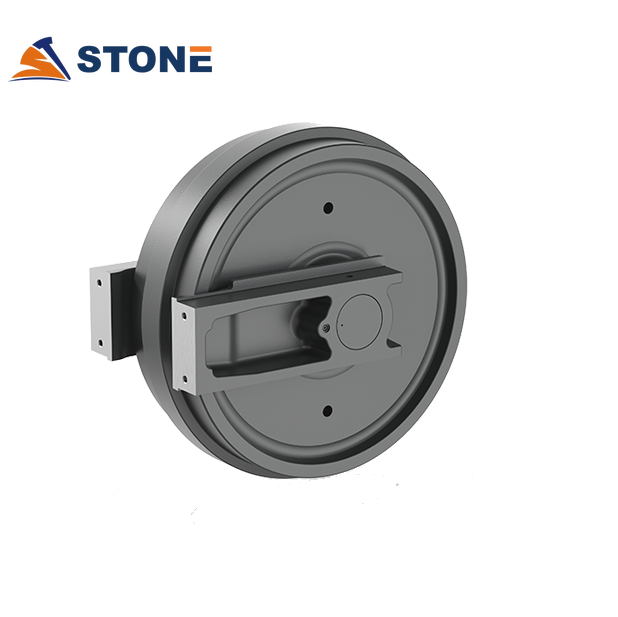

Wear Limit Measurement Of The XE215C  Idler 800305386

Measure the wear depth of the idler flange and tread every 500 working hours. If the original flange thickness is reduced by more than 20%, or the tread diameter wears beyond the recommended limit, the idler has reached its replacement point. Continuing to operate beyond this point will cause track misalignment, excessive vibration, and accelerated wear on the track chain and bushings.

Inspection Of Oil Leakage And Axial Clearance

The  Idler 800305386 is lubricated with oil to ensure smooth rotation. During routine maintenance, visually inspect the floating seal area for any oil leakage. Check for excessive axial clearance by moving the idler side to side. Oil leaks or loose axial movement indicate seal or bearing failure, which can lead to seizure and severe undercarriage damage.

Avoid Premature Failure From Severe Impacts

The XE215C idler is designed to withstand normal track tension and digging forces. However, extreme impact from dropping the machine or violently striking rocks can crack the idler shell or damage the internal seals. Always operate the excavator smoothly and avoid unnecessary impacts against the track frame or idler.

Proper Seating And Cleaning During Idler Replacement

When replacing the XE215C Idler 800305386, thoroughly clean the mounting surface on the track frame. Remove compacted dirt, rust, or metal burrs. Apply a thin layer of anti-seize compound to the mounting shaft. Push the new idler into position by hand or with a suitable lifting tool to ensure it seats completely. Always use brand-new mounting bolts and tighten them to the specified torque.
