Maintenance Recommendations

Wear Limit Measurement of Idler Tread Diameter

Measure the outer tread diameter of the XDY190E idler every 250 working hours. The original diameter is approximately 620 mm. If the diameter is reduced by more than 10 mm, or if the tread surface shows flat spots or deep grooves, the idler has reached its wear limit. Continuing to operate with an oversized wear groove will change the effective rolling radius, causing the track to jump and accelerating sprocket tooth wear.

Inspection of Floating Seal and Bearing Clearance

The idler relies on a floating seal to retain grease and block abrasive mud. During every shift change, check the seal area for continuous oil film or leakage. Use a dial indicator to measure axial play. If the axial clearance exceeds 0.5 mm, the thrust washers or bearings are worn, and the seal is likely damaged. Replace the seal kit immediately to prevent bearing seizure.

Guide Block Surface and Sliding Clearance Verification

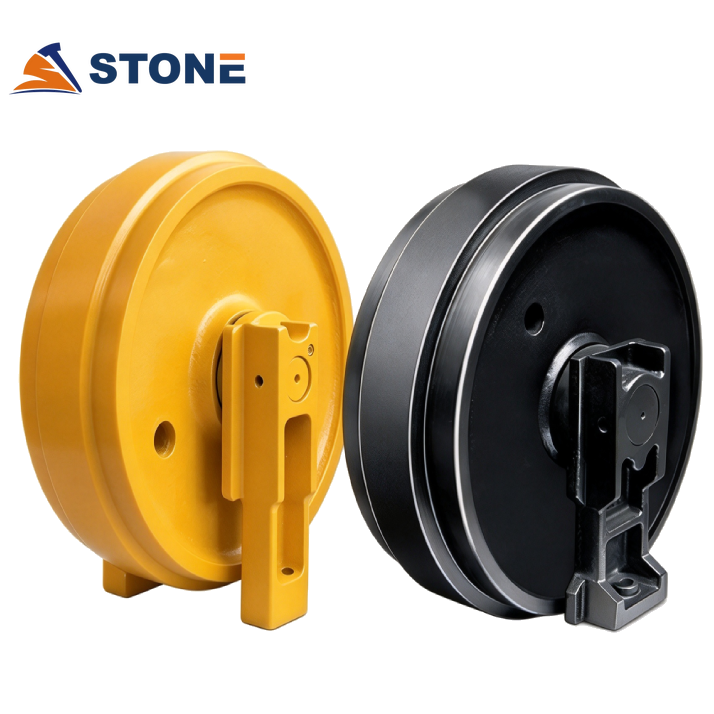

The Track Idler 414102285 slides on the track frame guide blocks to maintain tension. Clean the guide track surface and use a feeler gauge to measure the clearance between the idler guide surface and the frame guide plate. The specified clearance is 0.5–1.0 mm. If the clearance exceeds 1.5 mm or the guide blocks show scoring, the idler will tilt under load, causing uneven track chain contact and flange wear.

Proper Installation and Tension Cylinder Alignment

When installing a new idler, clean the mounting surface and ensure the tension cylinder pin aligns freely with the idler hub. Do not force the pin; check for shim requirements. After installation, adjust track sag to 30–50 mm at the midpoint. Overtightening increases pin friction and fuel consumption, while excessive slack causes the chain to whip and derail.
